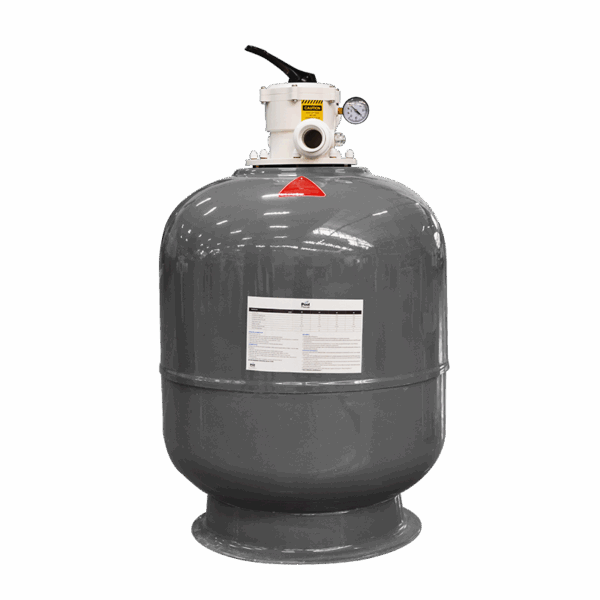

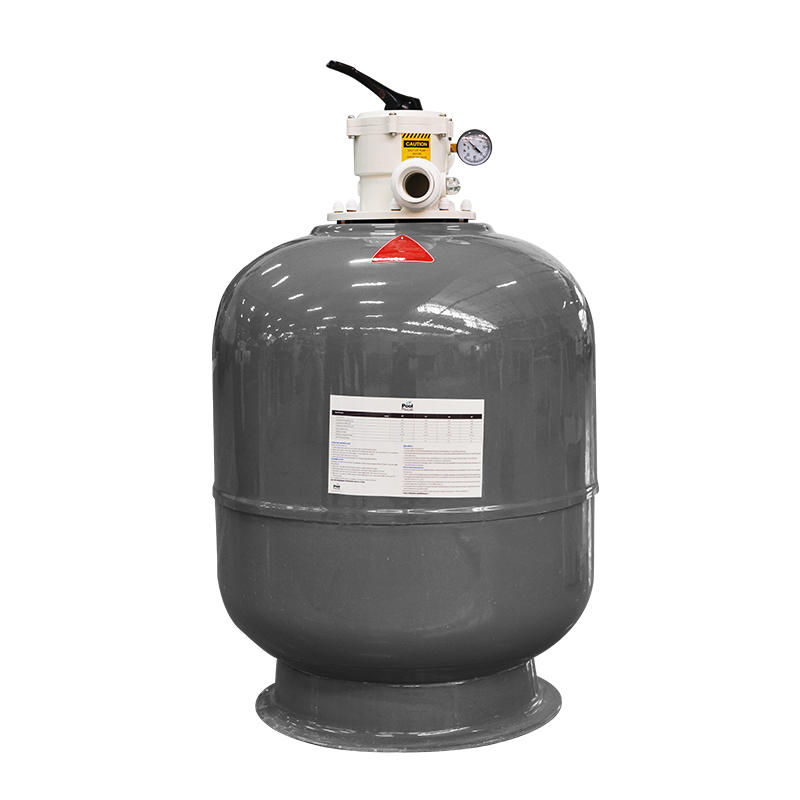

Top Mount Sand Filter
Made from High tensile Resin Bonded Fiberglass Isophthalic NPG Polyester Resin,316 Stainless Stell Come with Hub and Laterals and Pressure Gauge

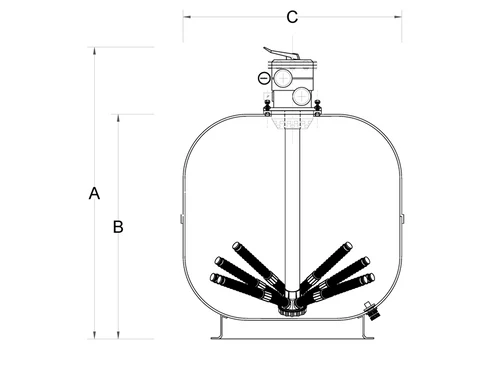

Model Technical Data
| Model | C mm.(in.) | A mm.(in.) | B mm.(in.) | Filter Area m2 | Flow Rate m3/hr | Sand kg | Valve Port mm.(in.) |
| PPLSF 20″TM | 510 (20”) | 914 (36”) | 660 (26”) | 0.21 | 10.5 | 100 | 40 (1-1/2”) |
| PPLSF 24″TM | 610 (24”) | 1016 (40”) | 765 (30”) | 0.29 | 14.5 | 190 | 40 (1-1/2”) |
| PPLSF 30″TM | 760 (30”) | 1118 (44”) | 810 (32”) | 0.45 | 22.5 | 300 | 50 (2”) |
| PPLSF 36″TM | 920 (36”) | 1219 (48”) | 905 (36”) | 0.67 | 33.5 | 450 | 50 (2”) |
