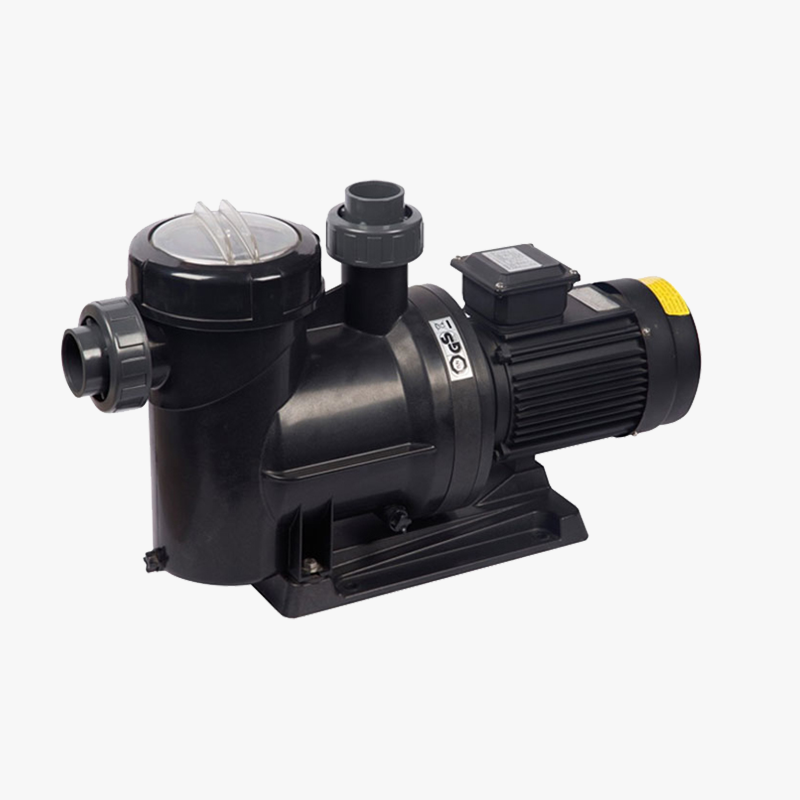

MRT Pool Pump

  • The MRT pump is built to be quiet, durable and reliable
  • The motor materials are rustproof, with a stainless steel motor shaft and sealed bearings that never need lubrication. The thermoplastic housing is built to withstand extreme heat and resist corrosion
  • New MRT can deliver cost benefits as it moves the same amount of water but consumes less energy than the previous model
  • It includes a pre-filter with a large strainer to prevent the entry of any foreign objects which could cause damage to the hydraulic parts of the pump
  • Large strainer basket extends time between cleaning
  • See-through lid makes inspections fast and easy
  • TUV GS Certified

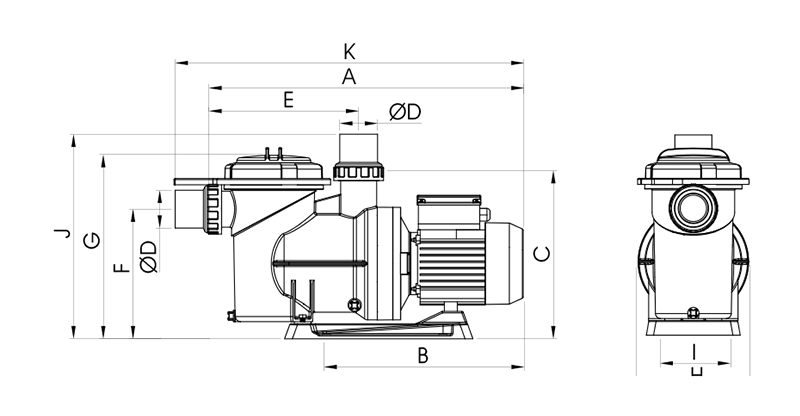

Dimension

Code 04010M02 04010M03 04010M05
A 601 611 646
B 378 388 423
C 321 321 321
D 50 50 63
E 285 285 285
F 246 246 246
G 355 355 355
H 224 224 224
I 152 152 152
J 392 392 392
K 653 663 698

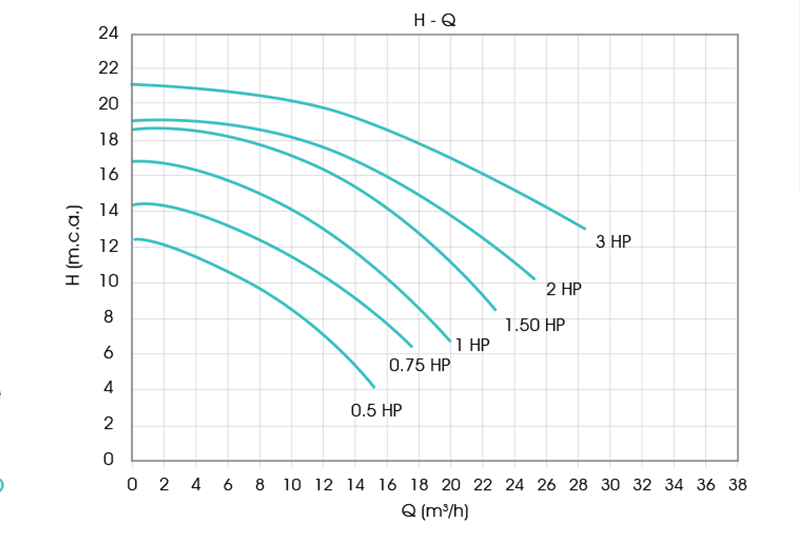

Performance curves

Model Technical Data

Code 04010M02 04010M03 04010M05
Model 3/4 HP Single Phase 1 HP Single Phase 2 Single Phase
H m.w.c. 10 10 12
Flow m3/h 12,7 16,4 23,0
Max dB (A) 65 65 70
